• Load capacity: 650 lbs.
• 27”W x 77”L x 17-35”H

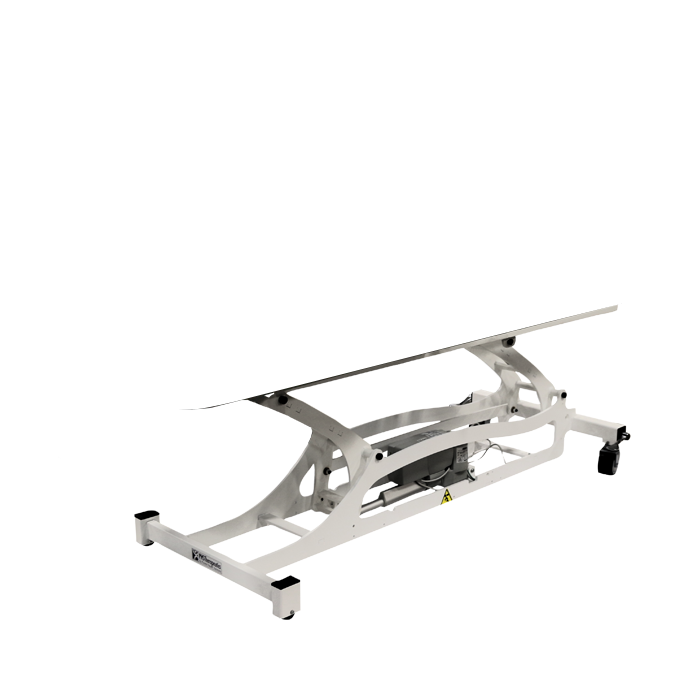

• Durable and stylish steel base (PT9020/PT9028)
• White powder coat base
• Whisper quiet lift system with single foot control pedal
• Height adjustment: 17-35”
• 27” Wide cushions in 7 different configuration options
• 2” High density foam cushions with rounded corners
• Low profile locking casters
• Lower extremity angle range: 0 to 65˚ (PT1177: 0 to 75˚)
• Armrest horizontal range: 0 to 45˚
• Armrest vertical range: 0 to 7”
• Head section angle range: +40˚ to -90˚ (PT1177: +35˚ to -45˚)
• 7 Section configuration includes electric elevating midsection with hand control
• ADA Compliant

Warranty

WARNING: California Proposition 65 Information

TABLE CONFIGURATIONS:

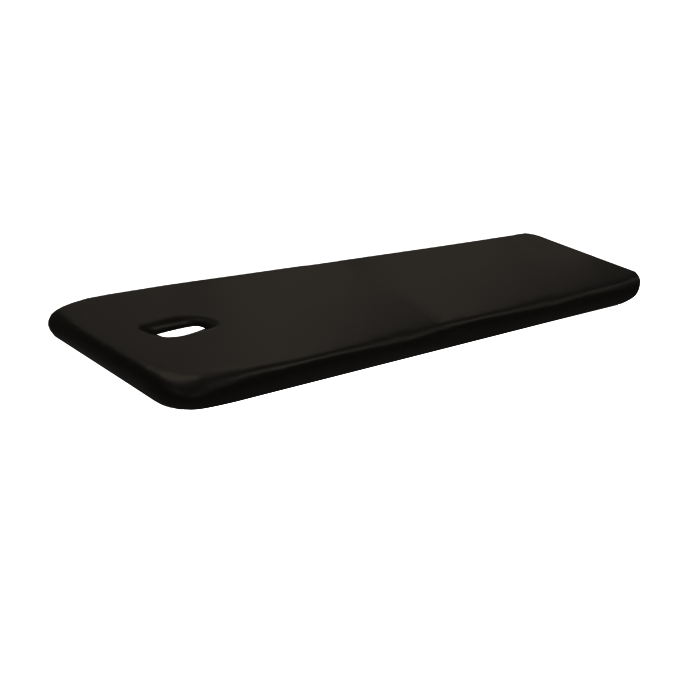

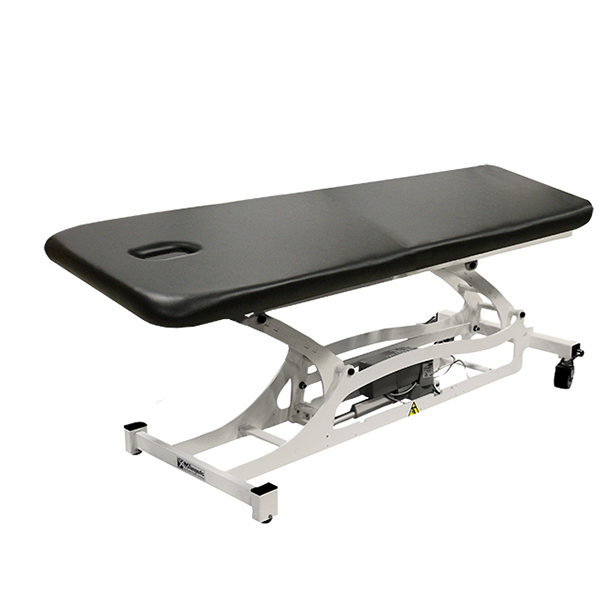

PT1101 - 1 Section 27” Width

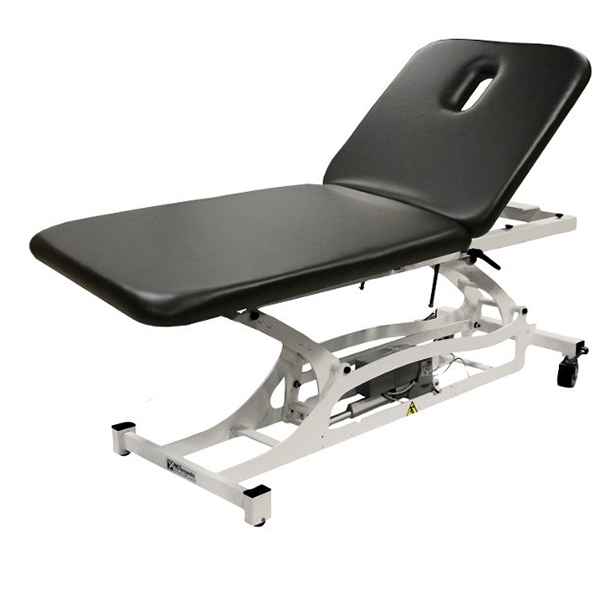

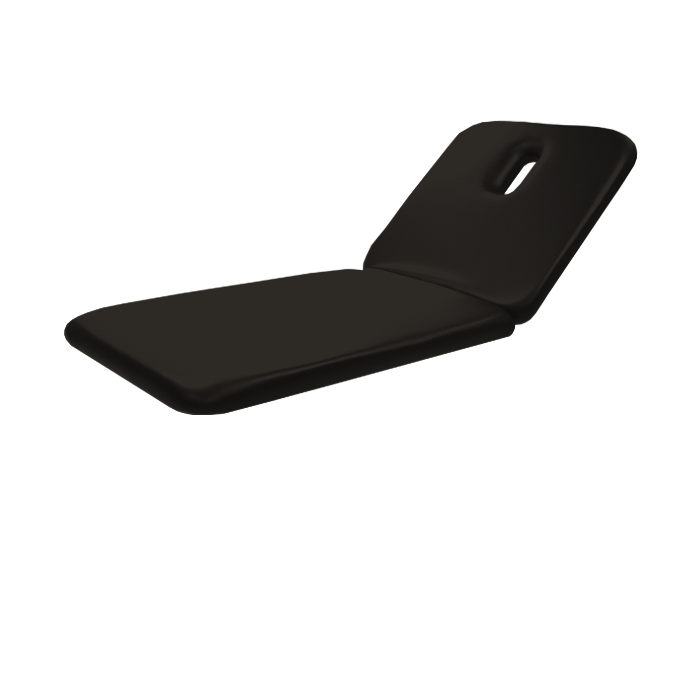

PT1102 - 2 Section 27” Width

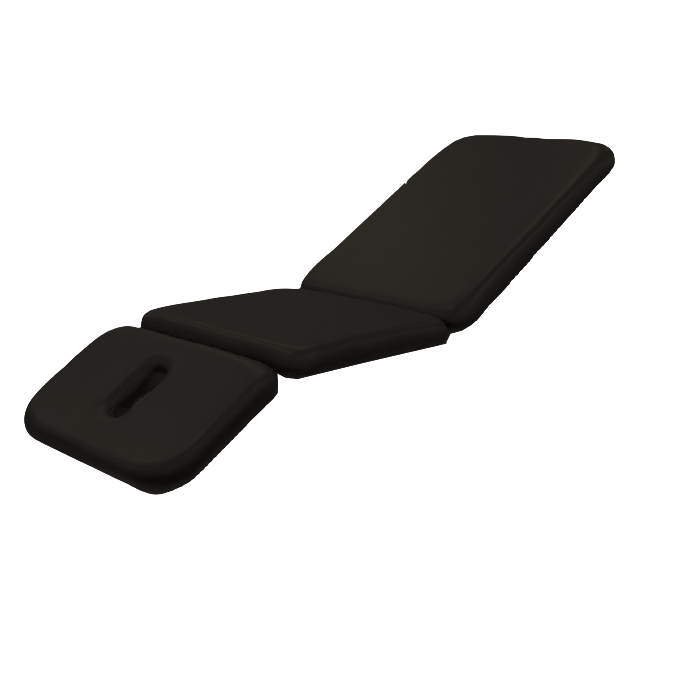

PT1103 - 3 Section 27” Width

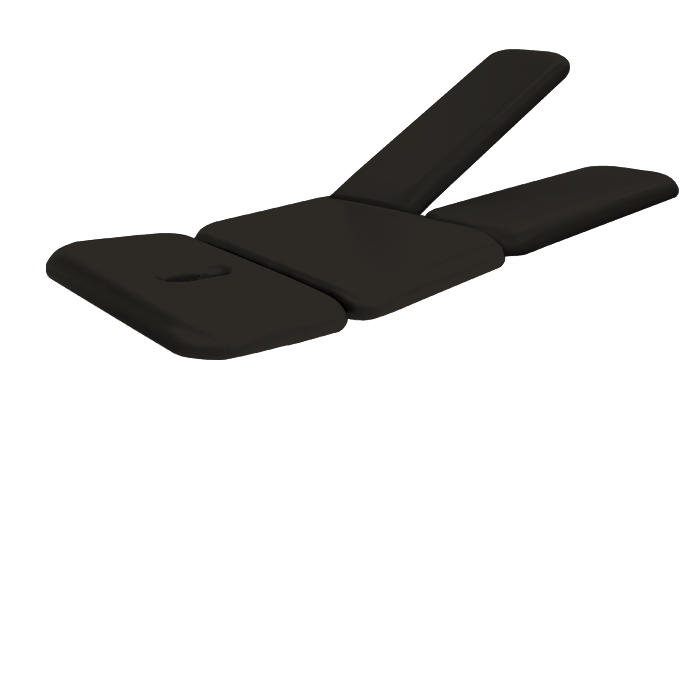

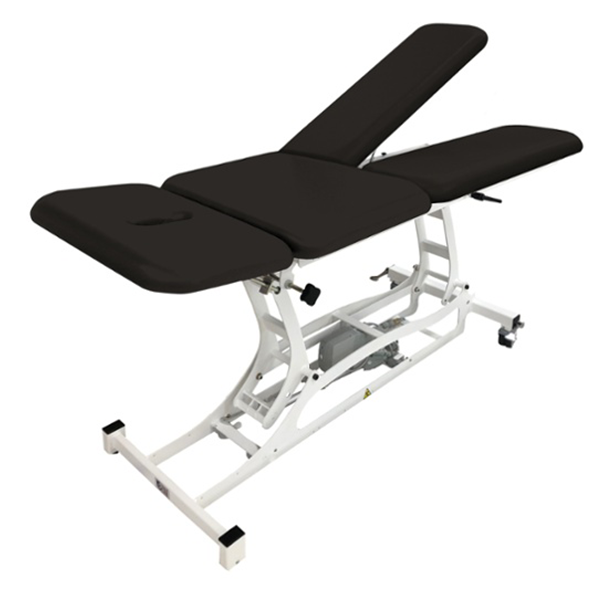

PT1104 - 4 Section 27” Width

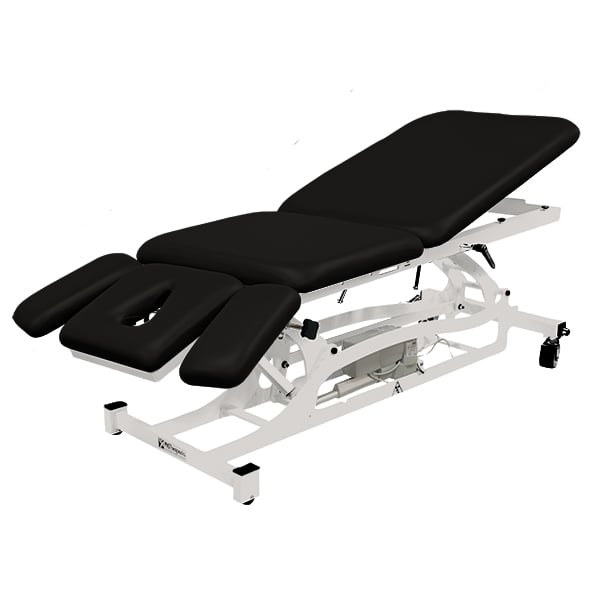

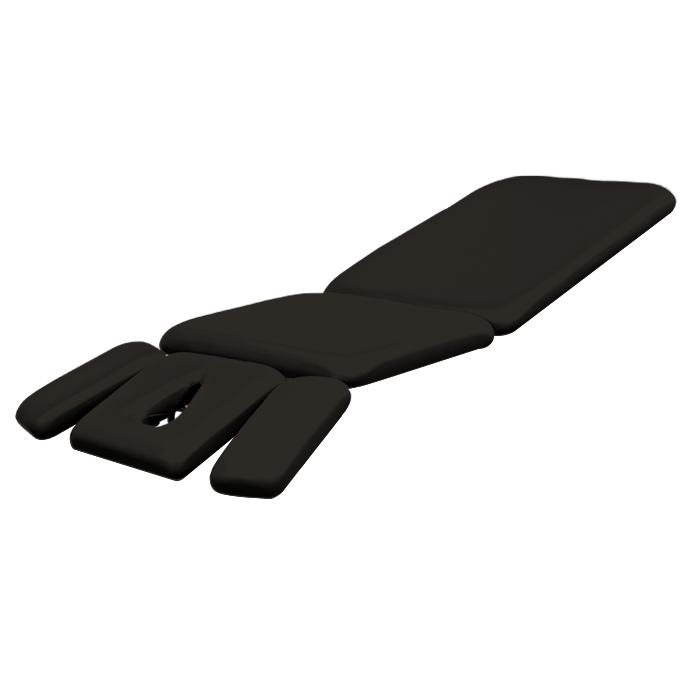

PT1105 - 5 Section 27” Width

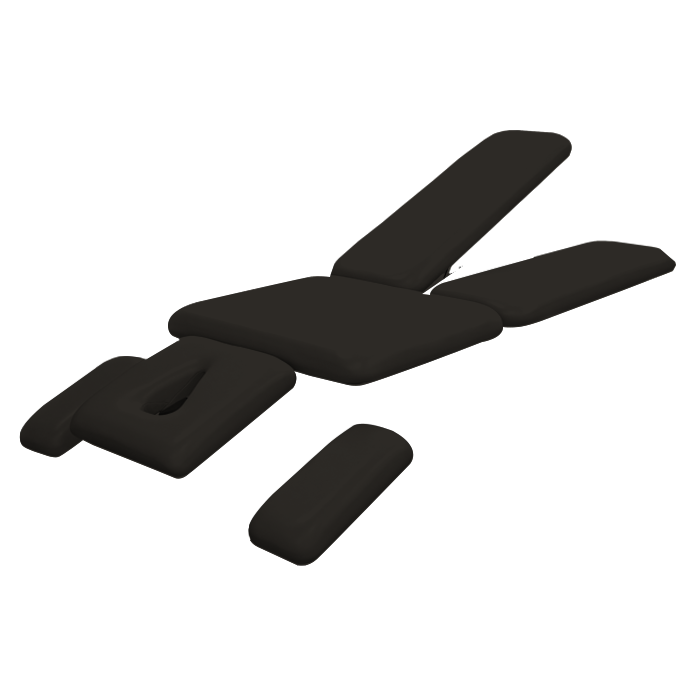

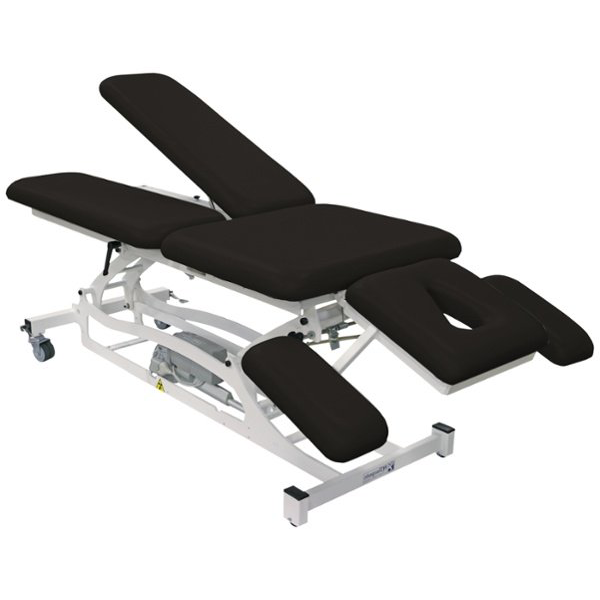

PT1106 - 6 Section 27” Width

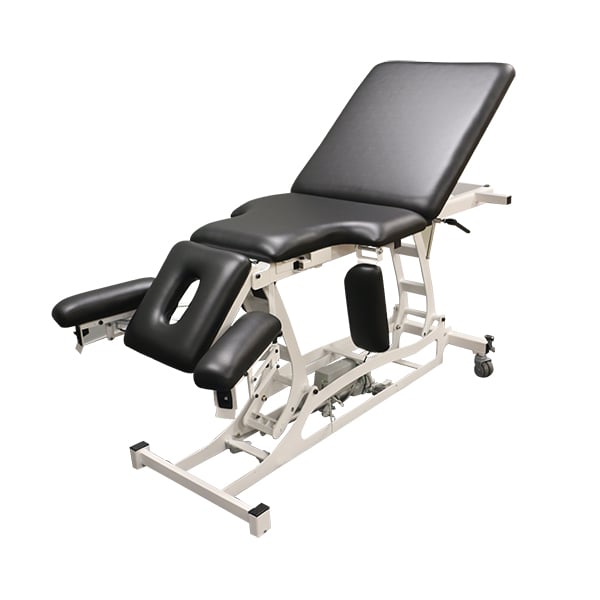

PT1177 - 7 Section 27" Width

OPTIONS:

PT9021 - 650 lb Lifting Capacity (240V for PT1101, PT1102, PT1103, PT1104, PT1105, & PT1106)

PT9029 - 650 lb Lifting Capacity (240V for PT1177)

PT303x - 30”W Cushion Configuration

S1135 - Manual Elevating Midsection (Only available on PT1103 & PT1105)

S1077 - Dual Foot Control Pedal

S1078 - Dual Foot Bar Control

S2078 - Dual Foot Bar Control with Front Foot Bar Adder

EPTPH01 - Paper Roll Holder and Cutter (Only available on PT1101, PT1102, or PT1103)

PT10001 - Nose Hole Plug

S1151 - (1) Battery and (1) Wall Charger

S1152 - (2) Batteries and (1) Wall Charger

BRANDING KITS:

BRANDING KIT 1 - S1170

• Slip Cover

• Custom Table Base Color

• Custom Table Base Graphics

*Not available on PT1101 , PT1104, or PT1106

BRANDING KIT 2 - S1171

• Slip Cover

• White Table Base Color

• Custom Table Base Graphics

*Not available on PT1101 , PT1104, or PT1106

BRANDING KIT 3 - S1173

• Deboss Logo

• Custom Table Base Color

• Custom Table Base Graphics

*Not available on PT1104 or PT1106

BRANDING KIT 4 - S1174

• Deboss Logo

• White Table Base Color

• Custom Table Base Graphics

*Not available on PT1104 or PT1106

BRANDING KIT 5 - S1176

• Color Edge Print

• Custom Table Base Color

• Custom Table Base Graphics

*Not available on PT1104 or PT1106

BRANDING KIT 6 - S1177

• Color Edge Print

• White Table Base Color

• Custom Table Base Graphics

*Not available on PT1104 or PT1106

CUSTOM CUSHION BRANDING:

PT3027 - Logo Slip Cover (27”W x 12”H)

PT3030 - Logo Slip Cover (30”W x 12”H)

LOGO DB - Deboss Logo (12”W x 12”H)

• DEBPLT12 - Deboss Plate

LOGO CP - Color Edge Print (12”W x 12”H)

• See Colors tab for Color Edge Print Upholstery Choices

CUSTOM BASE OPTIONS:

S1178 - Table Base Graphics

PT9020-CC - Pick Custom Base Color

S2000 - Custom Table Base Powder Coat Color and Table Base Graphics
